Features

Choose Size:

43
50
55
65
75
85

Description

Specifications

Display
Diagonal Size 43 ''
Panel Type IPS
Resolution 3,840 x 2,160
Pixel Pitch (HxV, mm) 0.245x0.245 mm
Brightness (Type) 500 nits
Contrast Ratio 1,200:1
Viewing Angle (H/V) 178/178
Response Time 8 m/s
Color Gamut 72 % (NTSC)
Glass Haze 25%
H-Scanning Frequency 30~81 kHz
Maximum Pixel Frequency 594 MHz
V-Scanning Frequency 48~75 Hz
Contrast Ratio (Dynamic) Mega
Operation Time Support 24/7

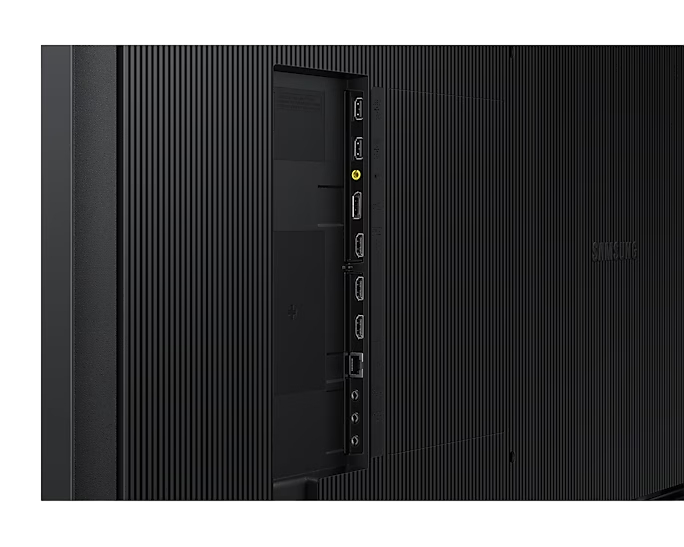

Connectivity
HDMI In 3
DP In 1
Version of HDMI 2
Version of DP 1.2
Version of HDCP 2.2
USB 2
IR In Yes
Audio In No
Audio Out Stereo Mini Jack
RS232 In Yes
RS232 Out Yes
RJ45 In Yes
WiFi Yes
Bluetooth Yes
Power
Power Supply AC100-240 V 50/60 Hz
Power Consumption (Off Mode, W) -
Power Consumption (On Mode, W) 121 W
Power Consumption (Sleep Mode, W) 0.5 W
Dimension

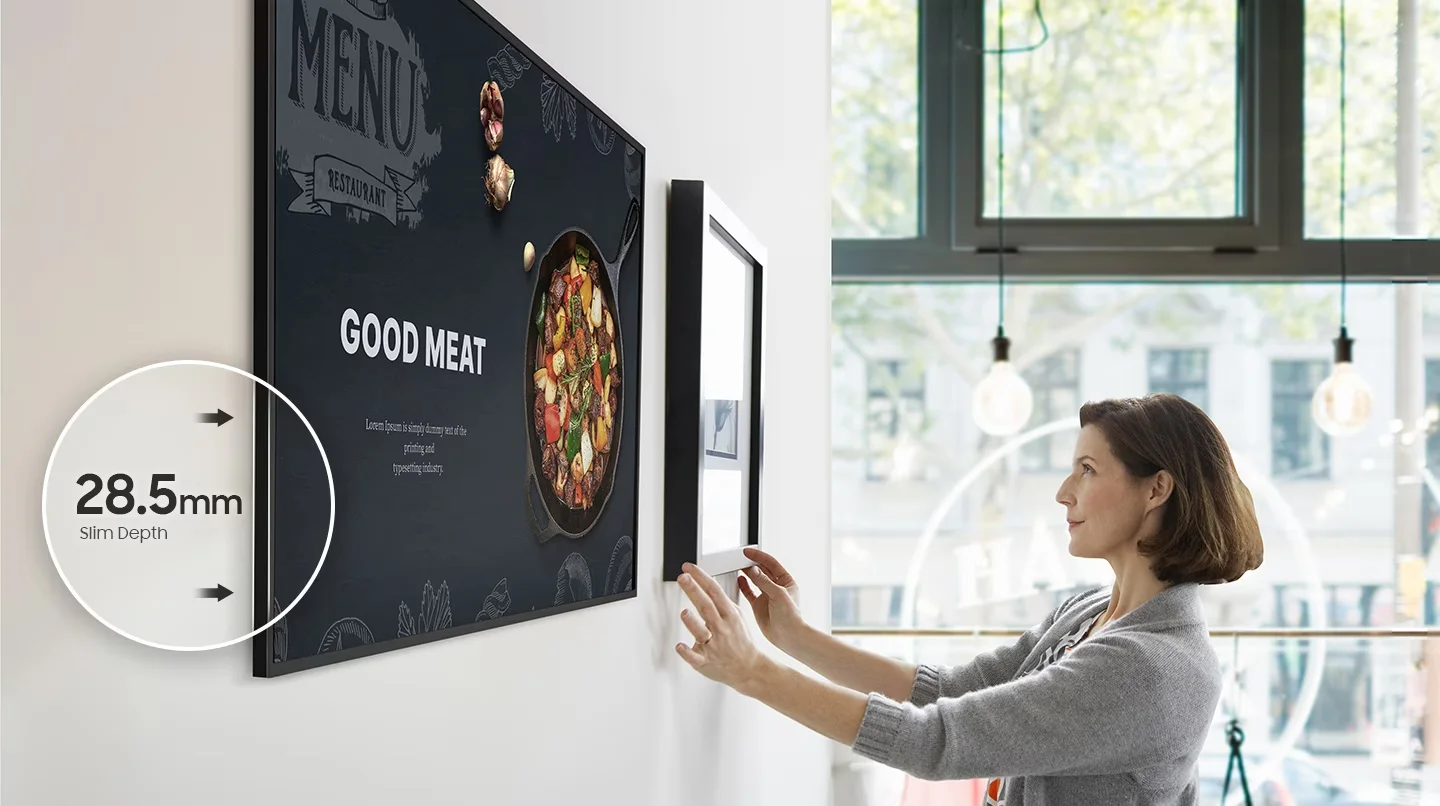

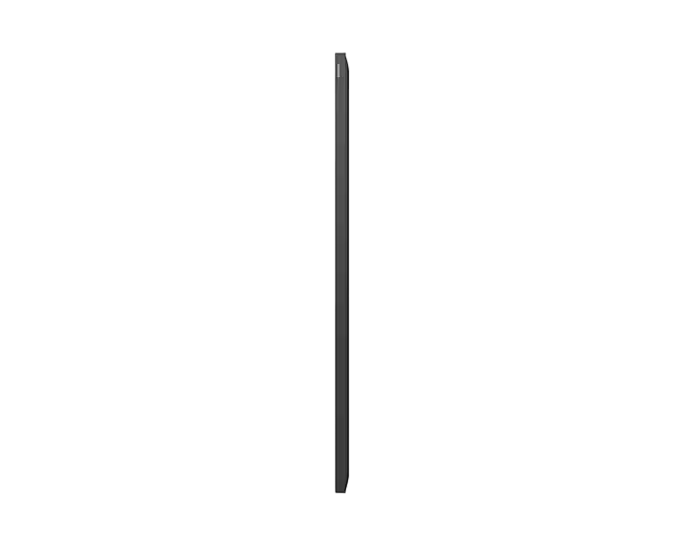

Set Dimension (WxHxD, mm) 969.5 x 557.8 x 28.5 mm
Package Dimension (WxHxD, mm) 1093 x 667 x 126 mm
Weight
Set Weight 8.8 kg (11.8 kg)
Package Weight 11.3 kg (14.9 kg)
Operation Conditions
Temperature 0 ℃~ 40 ℃
Humidity 10 ~ 80 %, non-condensing
Mechanical Specification

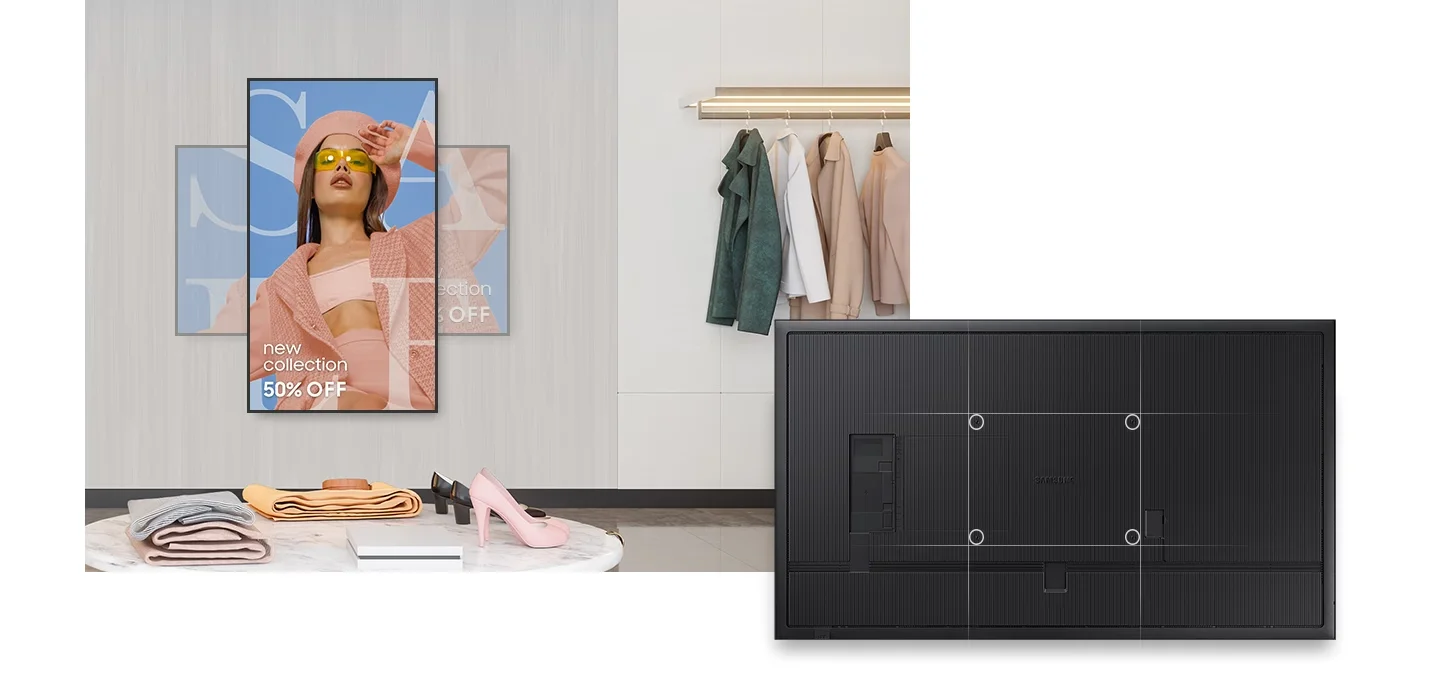

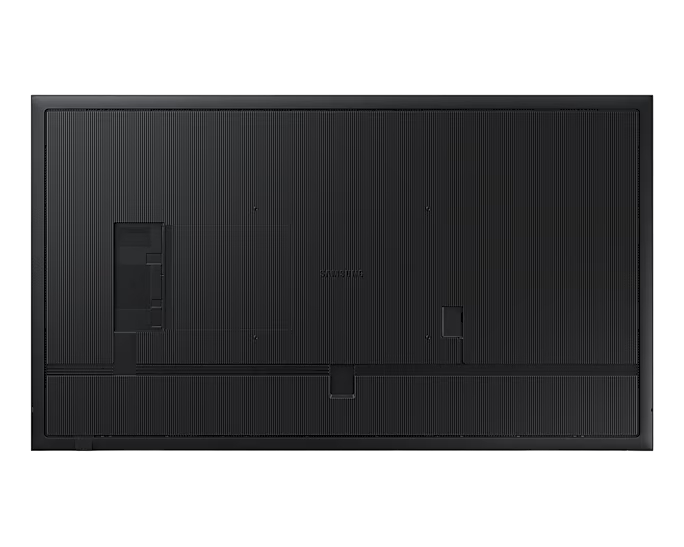

VESA Mount (mm) 200 x 200 mm
Bezel Width (mm) 11.5 mm (even)
Frame Material Non-Glossy
Optional Feature
Mount WMN-B50SC
Stand STN-L4355C
SoC
OS Version Tizen 7.0
Flash Memory Size 16 GB
Eco
Energy Efficiency Class B (A)
Certification and Compliance
EMC Class B
Safety 60950-1, 62368-1
