Features

Choose Size:

43
50
55
65
75

Description

Specifications

Display
Diagonal Size 43 ''
Panel Type VA
Resolution 3,840 x 2,160
Pixel Pitch (HxV, mm) 0.315x0.315
Brightness (Typ) 700 nit
Contrast Ratio 4,000:1
Viewing Angle (H/V) 178/178
Response Time 8ms
Color Gamut 72% (NTSC)
Glass Haze 25%
H-Scanning Frequency 30~81kHz
Maximum Pixel Frequency 594MHz
V-Scanning Frequency 48~75Hz
Contrast Ratio (Dynamic) Mega
Operation Time Support 24/7

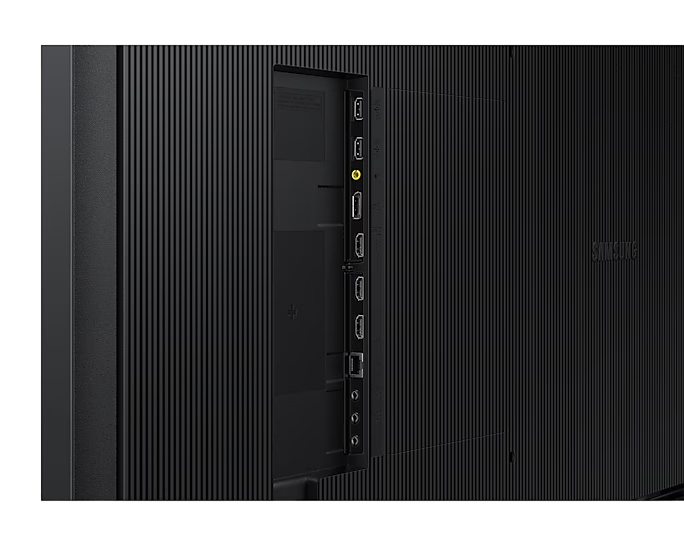

Connectivity
HDMI In 3
DP In 1
Version of HDMI 2
Version of DP 1.2
Version of HDCP 2.2
USB 2
IR In Yes
Audio In No
Audio Out Stereo Mini Jack
RS232 In Yes
RS232 Out Yes
RJ45 In Yes
WiFi Yes
Bluetooth Yes
Power
Power Supply AC100-240V 50/60Hz
Power Consumption (Off Mode, W) -
Power Consumption (On Mode, W) 187
Power Consumption (Sleep Mode, W) 0.5
Dimension

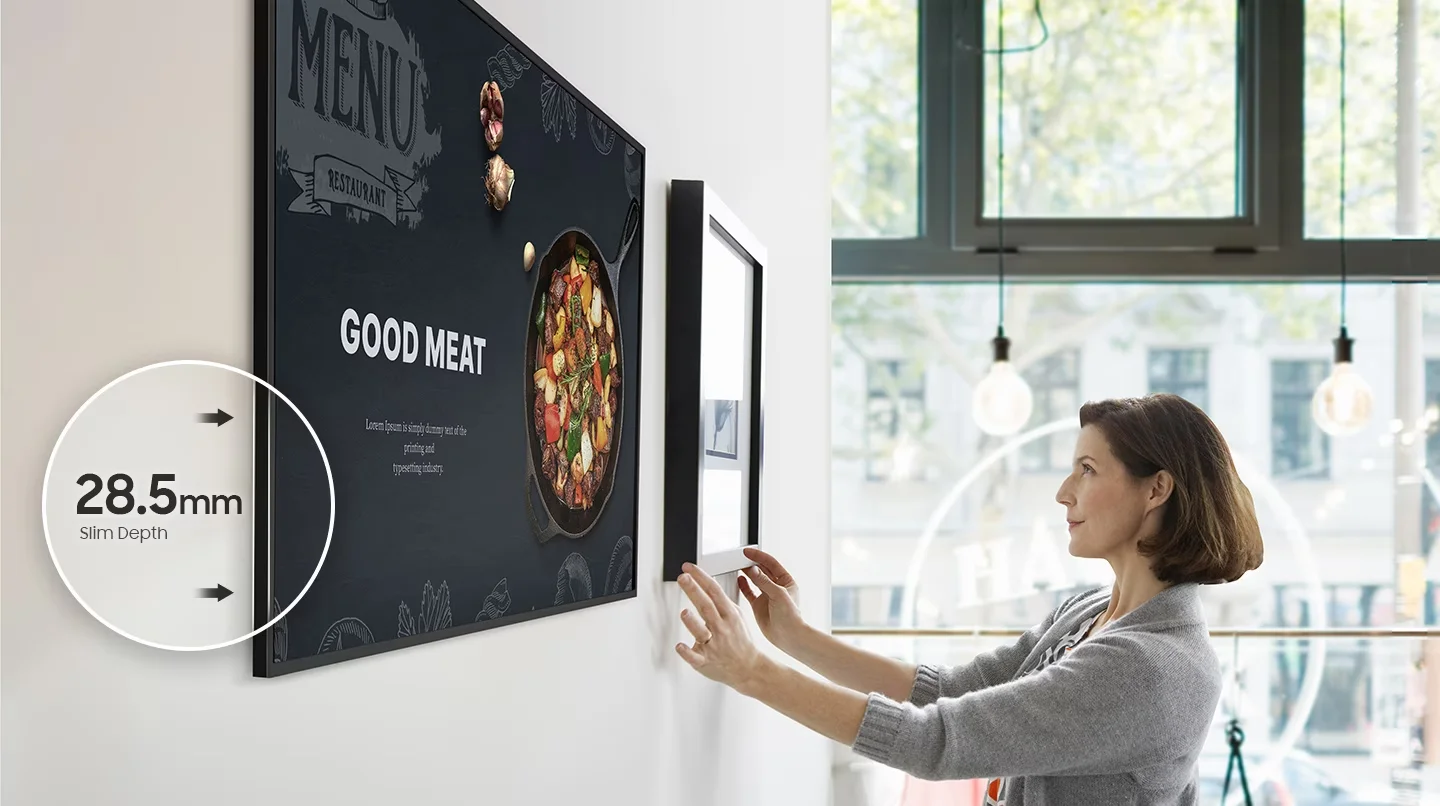

Set Dimension (WxHxD, mm) 1237.9 x 708.8 x 28.5
Package Dimension (WxHxD, mm) 1403 x 835 x 148
Weight
Set Weight (kg) 16.9
Package Weight 21.1 kg
Operation Conditions
Temperature 0 ~ 40 ℃
Humidity 10 ~ 80%, non-condensing
Mechanical Specification
VESA Mount (mm) 200 x 200

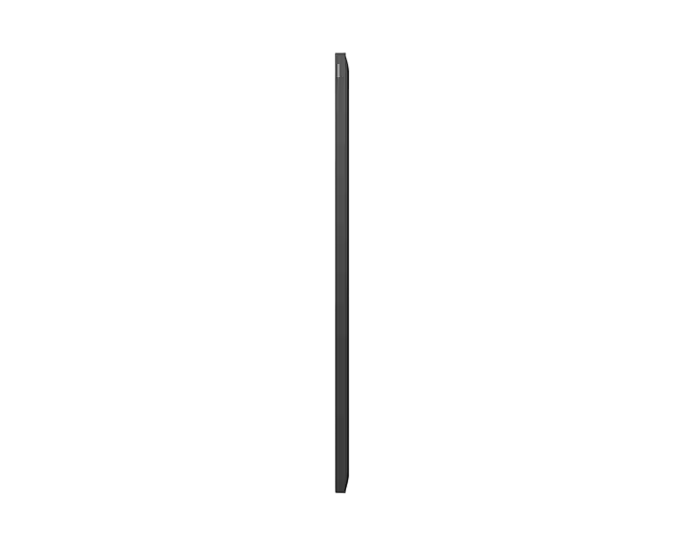

Bezel Width (mm) 11.5mm (even)
Frame Material Non-Glossy
Optional Feature
Mount WMN-B50SC
Stand STN-L4355C
SoC
OS Version Tizen 7.0
Flash Memory Size 16GB
Eco
Energy Efficiency Class A
Certification and Compliance
EMC Class B
Safety 60950-1, 62368-1
