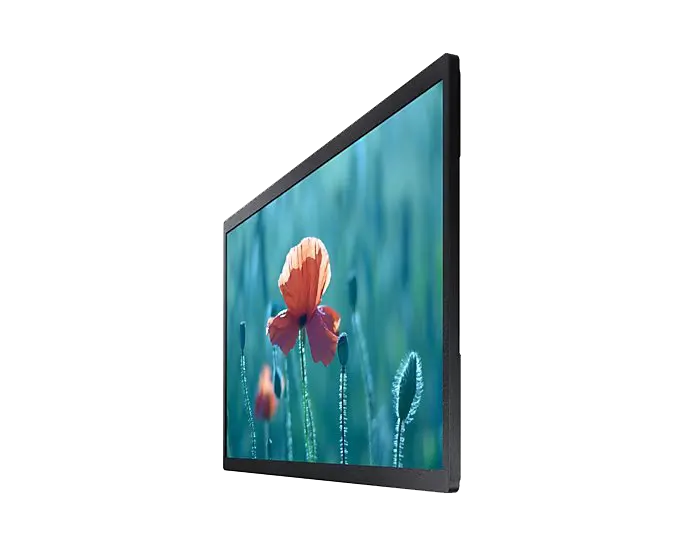

Samsung Small Display Full HD QBR B Series

Samsung Small Display Full HD QBR B Series
Samsung Small Display Full HD QBR B Series
Samsung Small Display Full HD QBR B Series
Samsung Small Display Full HD QBR B Series
Samsung Small Display Full HD QBR B Series
Samsung Small Display Full HD QBR B Series

Features

Choose Size:

24

Description

Specifications

Display
Diagonal Size 23.8 ''
Panel Type ADS
Resolution 1,920 x 1,080
Pixel Pitch (HxV) 0.2745 x 0.2745 mm
Brightness (Typ) 250 nit
Contrast Ratio 1,000:1
Viewing Angle (H/V) 178/178
Response Time 14ms
Color Gamut 72%
Glass Haze 25%
H-Scanning Frequency 48~ 75 Hz
Maximum Pixel Frequency 594MHz
V-Scanning Frequency 56 ~ 84.5kHz
Contrast Ratio (Dynamic) Mega
Operation Time Support 16/7

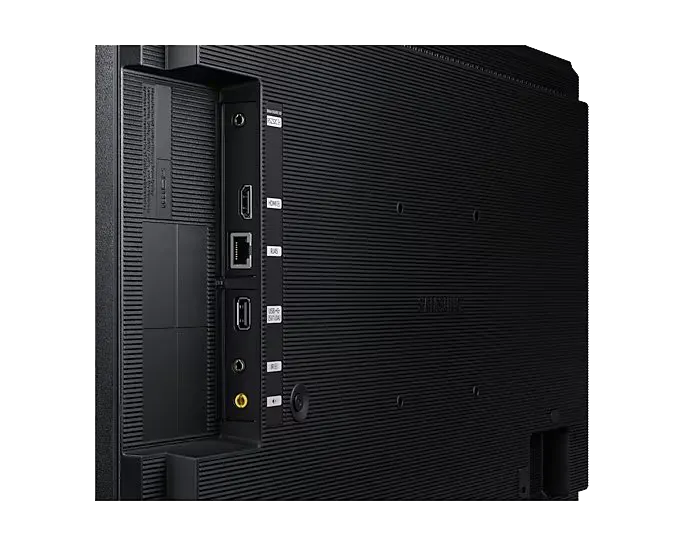

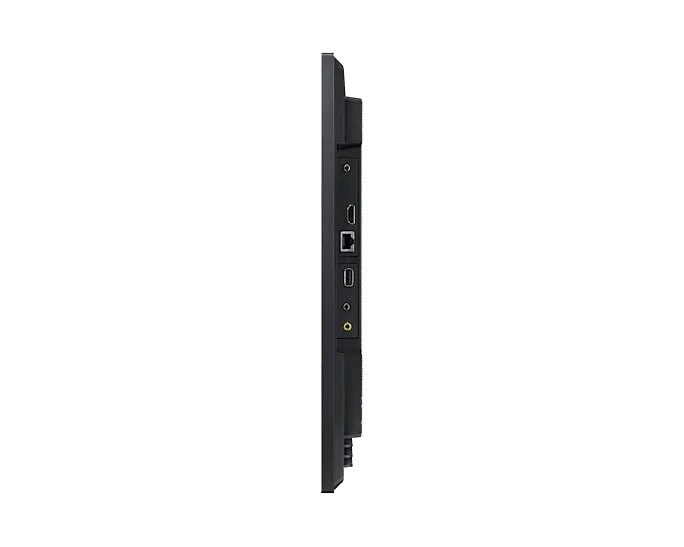

Connectivity
HDMI In 1
DP In No
Version of HDMI 1.4
Version of DP No
Version of HDCP 2.2
USB 1
IR In Yes
Audio In No
Audio Out Stereo Mini Jack
RS232 In Yes
RJ45 In Yes
WiFi Yes
3G Dongle No
Power
Power Supply AC100-240V 50/60Hz
Power Consumption (On Mode) 38.5 W
Power Consumption (Sleep Mode) 0.5 W
Dimension
Set Dimension (WxHxD) 547.9 x 334.4 x 31.8 mm
Package Dimension (WxHxD) 620 x 419 x 122 mm
Weight
Set Weight 3.0 kg
Package Weight 4.1 kg
Operation Condition
Temperature 0 °C~ 40 °C
Humidity 10 ~ 80%, non-condensing
Mechanical Specification

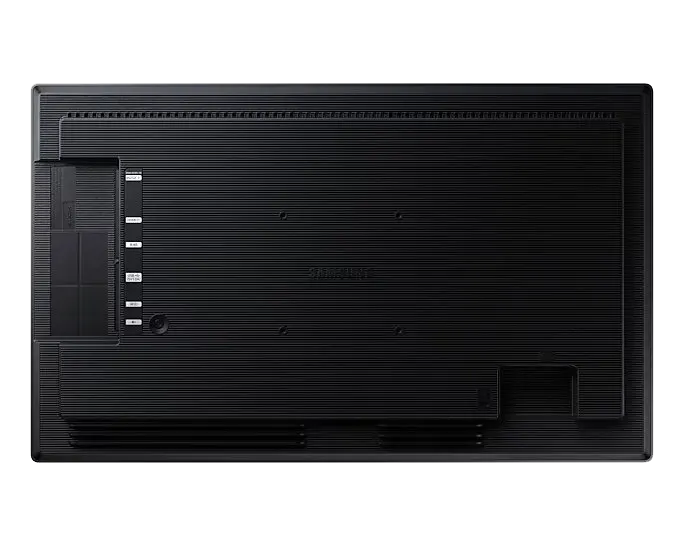

VESA Mount 100 x 100 mm
Bezel Width UD : 17.9 / LR : 9.4
Frame Material Non-Glossy
Optional Feature
Mount No
Stand No
SoC
OS Version Tizen 4.0
Flash Memory Size 8GB
Certification and Compliance
EMC Class B
Safety 60950-1, 62368-1
