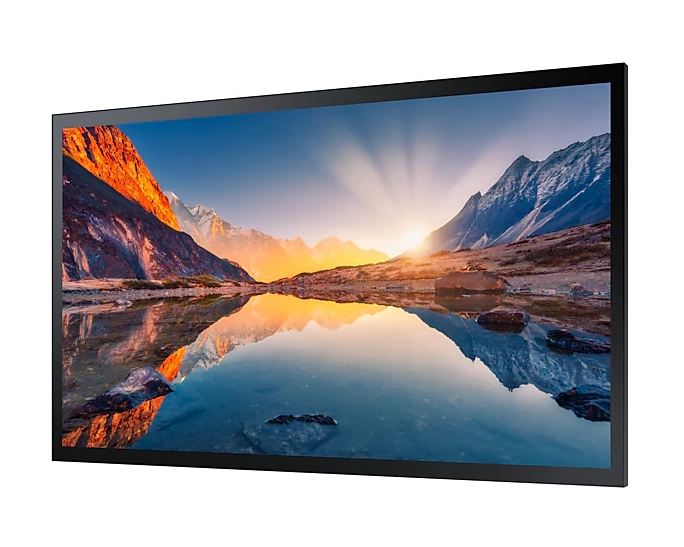

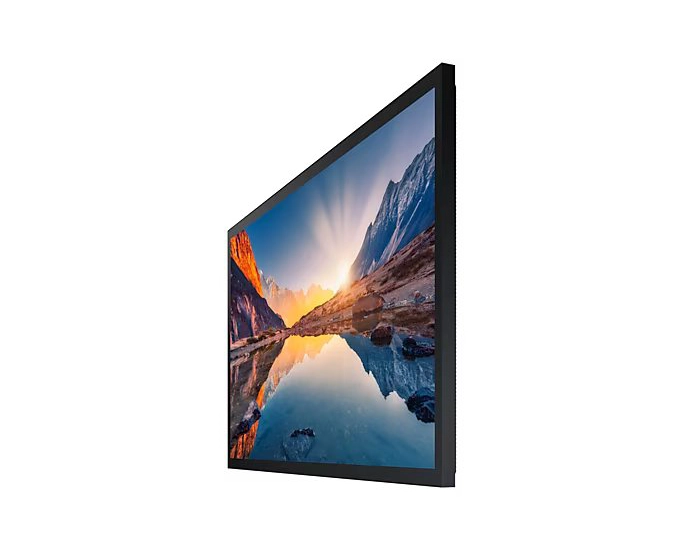

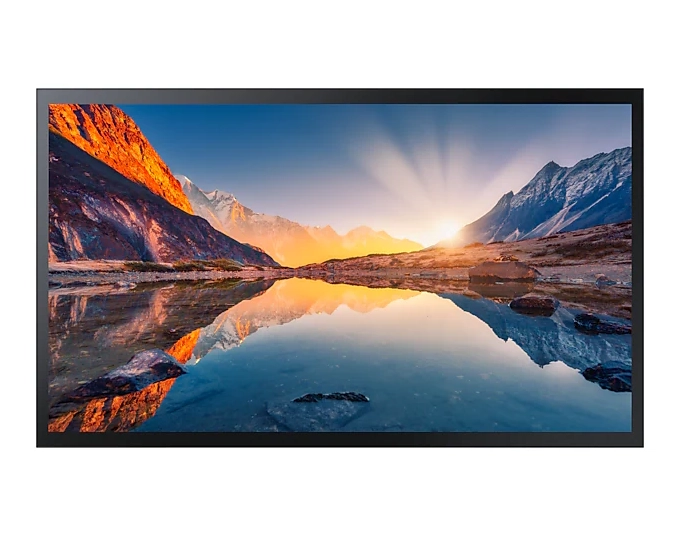

Samsung Smart Signage with Full HD Touch Display

Samsung Smart Signage with Full HD Touch Display
Samsung Smart Signage with Full HD Touch Display
Samsung Smart Signage with Full HD Touch Display
Samsung Smart Signage with Full HD Touch Display
Samsung Smart Signage with Full HD Touch Display

Features

Choose Size:

32
43
55

Description

Specifications

Display
Diagonal Size 81cm (32")
Panel Type New Edge, 60Hz
Resolution 1,920 x 1,080
Pixel Pitch (HxV) 0.36375 x 0.36375 (mm)
Brightness (Typical) 400(without glass), 300(with glass)
Contrast Ratio 5000:1(without glass)
Viewing Angle (H/V) 178/178
Response Time 8ms
Color Gamut 72%
Glass Haze 2% (without Glass)
H-Scanning Frequency 30 ~ 81kHZ
Maximum Pixel Frequency 594MHz
V-Scanning Frequency 48 ~ 75HZ
Contrast Ratio (Dynamic) Mega DCR

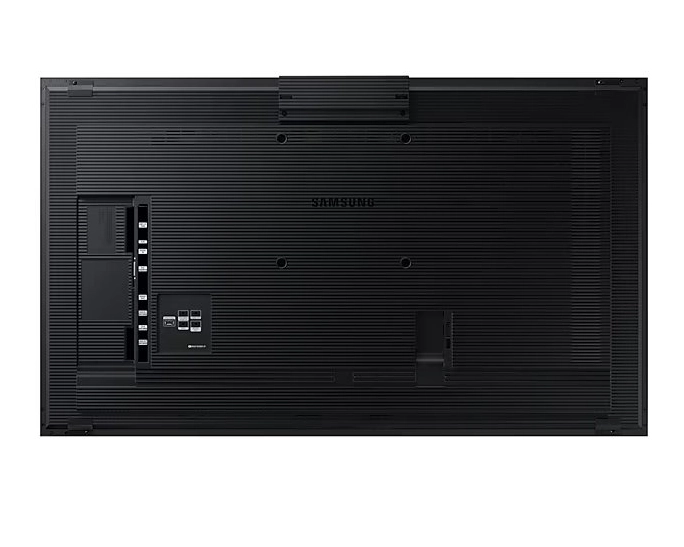

Connectivity
HDMI In 2
DP In Yes
USB 2
IR In Yes
HDBaseT In No
Audio In No
Audio Out Stereo Mini Jack
Video Out Yes
RS232 In Yes
RS232 Out Yes
RJ45 In Yes
RJ45 Out No
WiFi Yes
3G Dongle No
Bluetooth Yes
Power
Power Supply AC100-240V 50/60Hz
Power Consumption (On Mode) 72
Power Consumption (Sleep Mode) 0.5 W
Dimension
Set Dimension (WxHxD) 744.4 x 444.6 x 48.2 mm
Package Dimension (WxHxD) 872 x 565 x 133 mm
Weight
Set Weight 8.3 kg
Package Weight 11.1 kg
Operation Conditions
Temperature 0℃~ 40℃
Humidity 10 ~ 80%, non-condensing
Mechanical Specification
VESA Mount 200 x 200 mm
Bezel Width 24.5(U/D), 21.5(L/R)
Frame Material Non-Glossy
Optional Feature
Touch Yes
Mount WMN4070SE
Stand STN-L3240F
Internal Player (MagicInfo)
MagicInfo Daisychain Videowall Support Yes
Touch
Touch Technology Capative
