Features

Choose Size:

55

Description

Specifications

Display
Diagonal Size 1m 40cm (55 '')
Panel Type Direct LED
Resolution 1,920 x 1,080
Pixel Pitch (HxV) 0.63x0.63
Brightness (Typical) Max 700 cd/㎡
Contrast Ratio 1,100:1
Viewing Angle (H/V) 178/178
Response Time 8ms
Color Gamut 0.72 %
Glass Haze 0.28 %
H-Scanning Frequency 57.3kHz ~ 70kHz
Maximum Pixel Frequency 78MHz
V-Scanning Frequency 47Hz ~ 63Hz
Contrast Ratio (Dynamic) 30,000:1

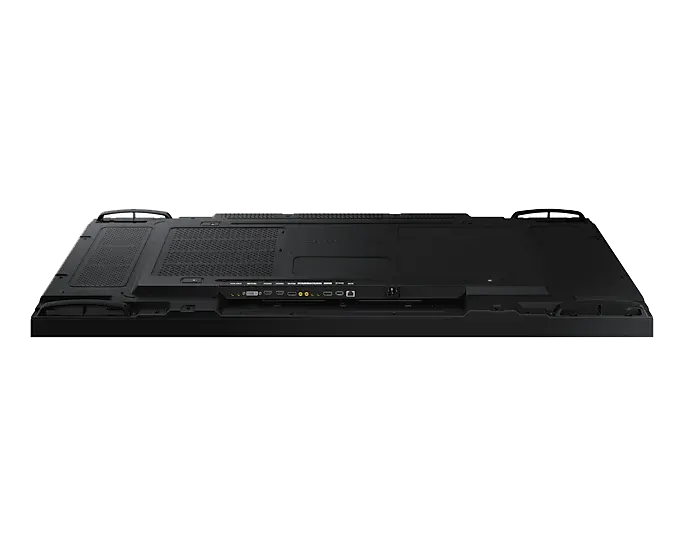

Connectivity
HDMI In 2
DP In 1
DVI In 1
Tuner In No
USB 1
Component In No
Composite In No
IR In Yes
HDBaseT In No
Audio In Yes
Audio Out Stereo Mini Jack
Video Out Yes
Power Out No
RS232 In Yes
RS232 Out Stereo Mini Jack
RJ45 In Yes
RJ45 Out No
Power
Power Supply AC 100 to 240 VAC (60 / 50Hz)
Power Consumption (On Mode) 270W
Power Consumption (Sleep Mode) 0.5W
Dimension
Set Dimension (WxHxD) 1211.0 x 681.7 x 69.9 mm
Package Dimension (WxHxD) 1414.0 x 844.0 x 257.0 mm
Weight
Set Weight 16.8 kg
Package Weight 25.1 kg
Operation Condition
Temperature 0 ~ 40 ℃
Humidity 10 ~ 90%
Mechanical Specification

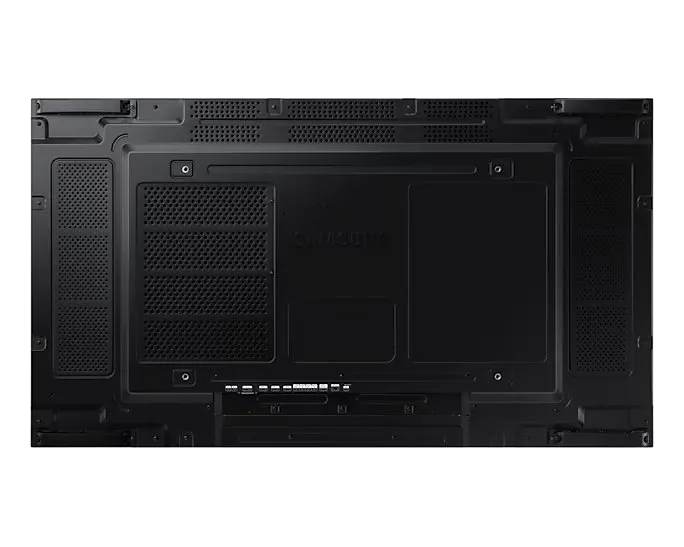

VESA Mount 600 x 400 mm

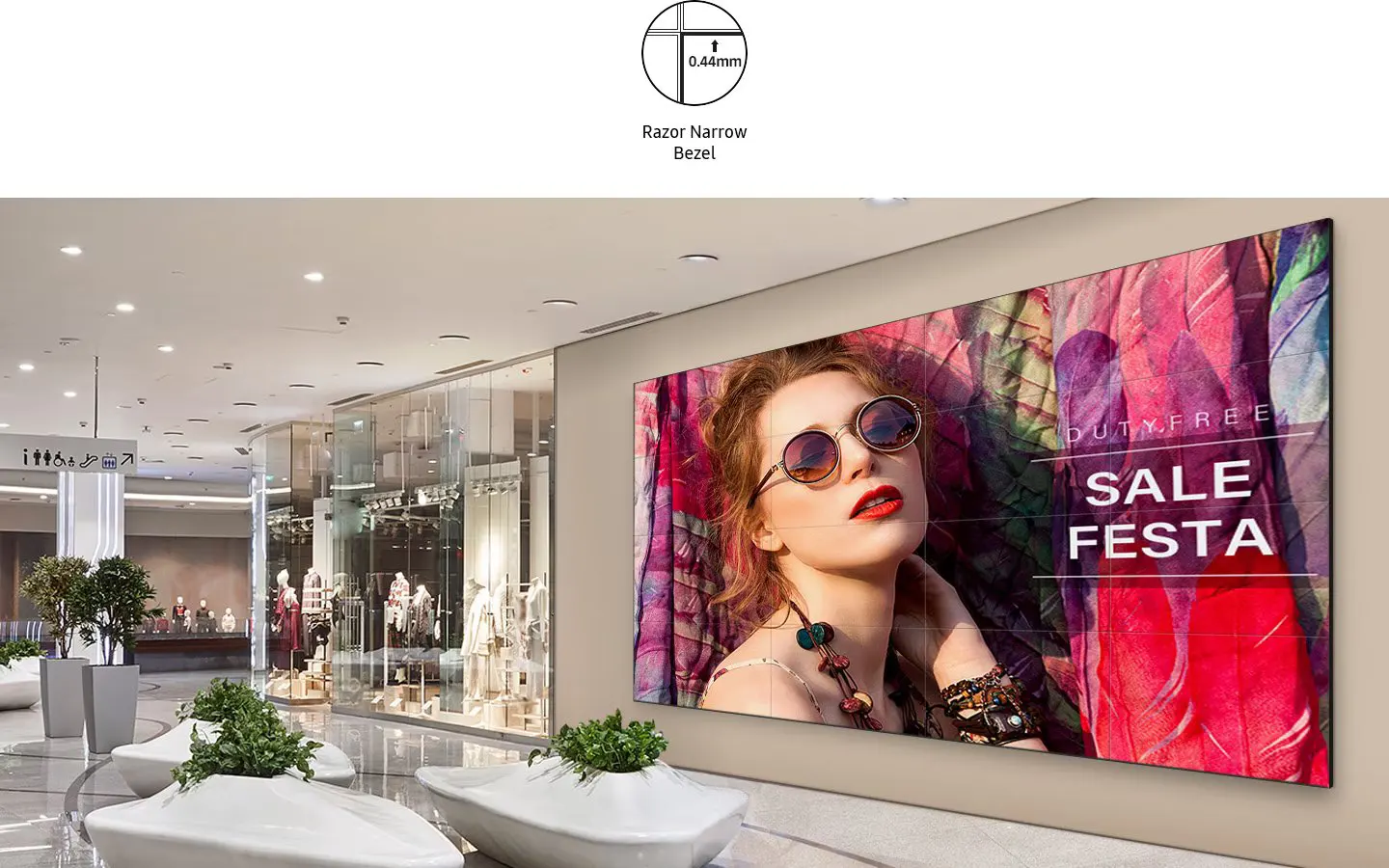

Bezel Width 0.44 (even)
Frame Material Glossy
General Feature
External Memory Slot No
Optional Feature
Mount Yes
Stand No
Internal Player (MagicInfo)
MagicInfo Daisychain Videowall Support Yes
Certification and Compliance
EMC Class B
Safety 60950-1
